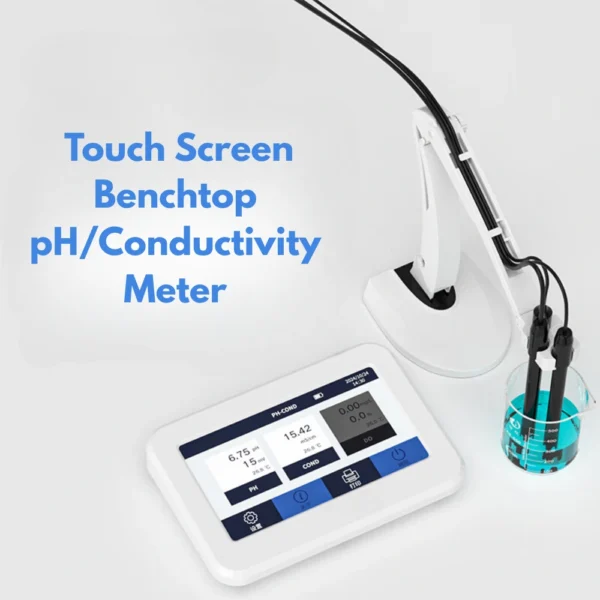

L111M08 touchscreen benchtop pH conductivity meter with dual-channel pH and EC display

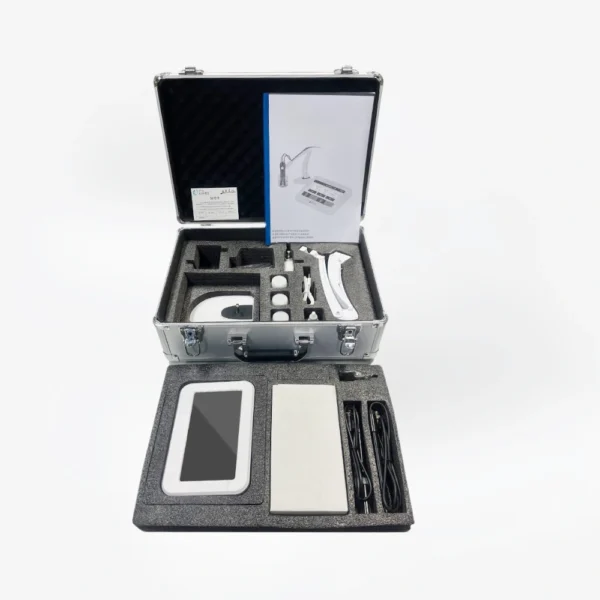

Full L111M08 benchtop pH conductivity meter kit with sensors and electrode stand.

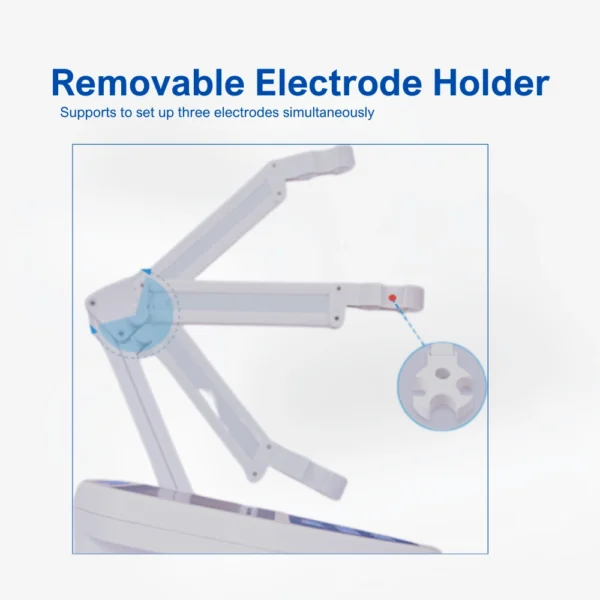

Removable multi-electrode holder of L111M08 supports up to three pH and EC sensors

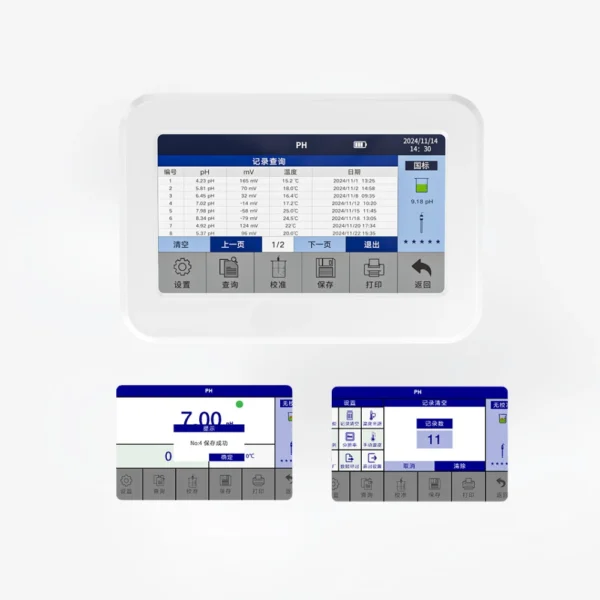

L111M08 benchtop multiparameter water quality meter's interface showing real-time pH and EC readings with data logs
High-precision pH and conductivity sensors included with L111M08 benchtop pH conductivity meter
Applications of L111M08 pH and conductivity meter in lab, education, agriculture, and quality control

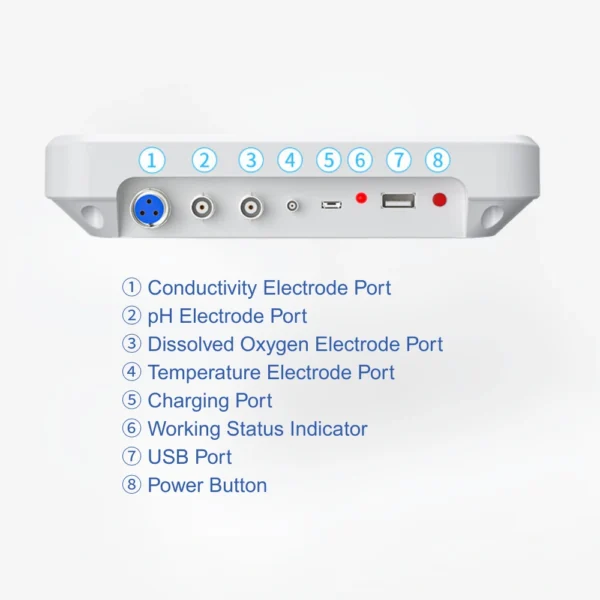

Back panel of L111M08 water quality analyzer with ports for pH, DO, EC, and USB output
  1. L111M08 touchscreen benchtop pH conductivity meter with dual-channel pH and EC display
  2. Full L111M08 benchtop pH conductivity meter kit with sensors and electrode stand.
  3. Removable multi-electrode holder of L111M08 supports up to three pH and EC sensors
  4. L111M08 benchtop multiparameter water quality meter's interface showing real-time pH and EC readings with data logs
  5. High-precision pH and conductivity sensors included with L111M08 benchtop pH conductivity meter
  6. Applications of L111M08 pH and conductivity meter in lab, education, agriculture, and quality control
  7. Back panel of L111M08 water quality analyzer with ports for pH, DO, EC, and USB output

Touchscreen Benchtop Combo pH EC TDS Meter for Multiparameter Water Quality Analysis

The L111M08 benchtop combo pH EC TDS meter utilizes a high-resolution touchscreen to measure multiple water parameters efficiently. It supports data logging, USB data export, and optional Bluetooth printing for convenient data management. With comprehensive calibration functions, a universal electrode holder, and specialized temperature compensation curves for accurate analysis of ultra-pure water, makes the L111M08 benchtop multi-parameter water quality meter ideal for labs and water treatment plants.
SKU: L111M08 Categories: , , , Tags: , , , , ,
  • 7-inch high-resolution TFT touchscreen provides intuitive operation and clear visualisation of pH and conductivity results.
  • Multiparameter water quality meter measures pH, EC, and TDS simultaneously for comprehensive water analysis.
  • Universal electrode holder supports flexible positioning and simultaneous use of up to three probes.
  • Stores up to 500 data sets internally, simplifying long-term tracking and reporting of results.
  • Data export via USB flash drive allows easy sharing and integration into quality control documentation.
  • Customizable calibration points with auto-recognition calibration, adjustable TDS factors, reference temperature, and conductivity cell constants enhances accuracy.
  • Specialized temperature compensation curves improve precision for low conductivity samples, ideal for pure water testing.
  • Electrode status alerts indicate timely maintenance needs, reducing unexpected interruptions and maintaining test integrity.
  • Ideal for laboratory, education, water treatment plants, and high-purity water analysis.
ParameterSpecification
pH Measuring Range-2.00 to 20.00 pH
pH Resolution0.01 / 0.01 pH
pH AccuracyMeter: ±0.01 pH 1 digit
pH Stability±0.01 pH / 3H
pH Temp. Compensation Range0 to 100°C (auto/manual)
mV Measuring Range-1999 mV to 0 to 1999 mV
mV Resolution1 mV
mV Accuracy±0.1% FS
Conductivity Measuring Range0.00 to 20.00 μS/cm; 20.0 to 200.0 μS/cm; 200 to 2000 μS/cm; 2.00 to 20.00 mS/cm; 20.0 to 200.0 mS/cm
TDS Measuring Range0 to 100 g/L
Salinity Measuring Range0 to 100 ppt
Resistivity Measuring Range0 to 100 MΩ·cm
Conductivity Resolution0.001 / 0.01 / 0.1 μS/cm, 0.01 / 0.1 mS/cm
Conductivity AccuracyMeter: ±1.0% FS, Full System: ±1.5% FS
Conductivity Temp. Compensation Range0 to 100°C (auto/manual)
Conductivity Cell Constant (K)0.01 / 0.1 / 1 / 10 cm⁻¹
Conductivity Reference Temperature25°C, 20°C, 18°C
Temperature Measuring Range0 to 100°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C ±1 digit
Data Storage500 sets
Stored ContentsDate, measurement value, unit, temperature
Power SupplyDC 12V / 1A
Dimensions & WeightInstrument: 195 × 135 × 40 mm / 600 g
Operation Temperature5 to 35°C (Class 0.01)
Humidity≤ 85%
IP RatingIP54 (Dust and Water Resistant)

Specifications are subject to change without prior notice.
