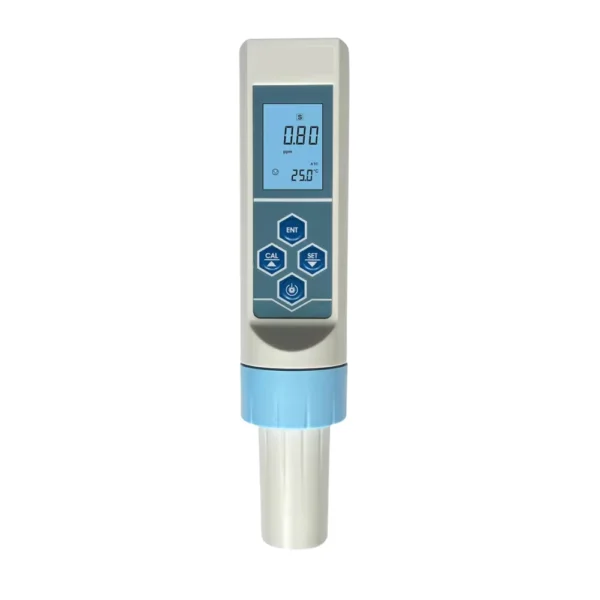

L111DZ01 dissolved ozone meter with digital display and replaceable electrode, ideal for quick O3 testing in water.
Application of L111DZ01 dissolved ozone meter in drinking water, healthcare, fish farming, and water treatment

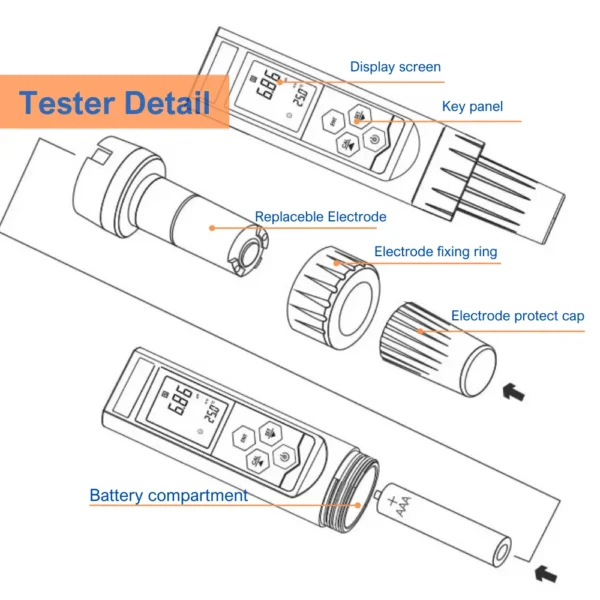

Structural breakdown of the L111DZ01 ozone meter, showing replaceable electrode, battery compartment, and control keys

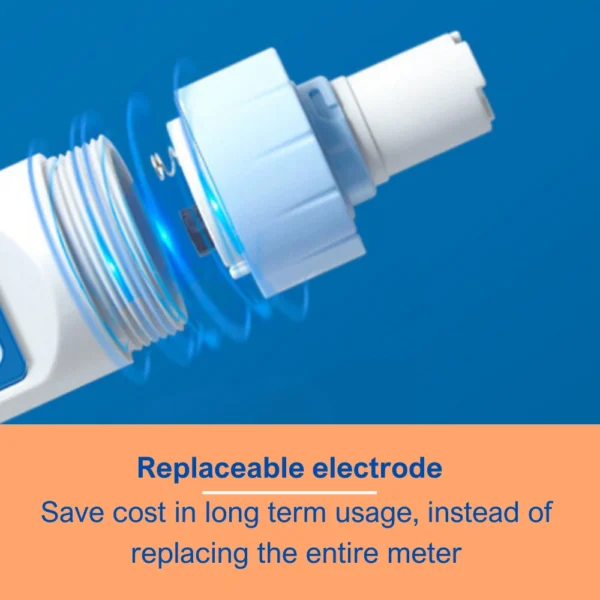

Easy twist-to-replace electrode design of the L111DZ01 DPD ozone meter
L111DZ01 features a clear multi-line backlit screen for dissolved ozone readings
Two-point calibration of L111DZ01 dissolved ozone meter
  1. L111DZ01 dissolved ozone meter with digital display and replaceable electrode, ideal for quick O3 testing in water.
  2. Application of L111DZ01 dissolved ozone meter in drinking water, healthcare, fish farming, and water treatment
  3. Structural breakdown of the L111DZ01 ozone meter, showing replaceable electrode, battery compartment, and control keys
  4. Easy twist-to-replace electrode design of the L111DZ01 DPD ozone meter
  5. L111DZ01 features a clear multi-line backlit screen for dissolved ozone readings
  6. Two-point calibration of L111DZ01 dissolved ozone meter

Pen-Type Dissolved Ozone O3 Mete wth Replaceable Dissolved Ozone Sensor

The L111DZ01 pen-type dissolved ozone meter combines efficiency with ease of use. It features a replaceable electrode and chemical reagents free for lower maintenance cost. The self-diagnosis system keeps users informed of electrode condition, and automatic reading lock and full temperature compensation optimize measurement accuracy, while the backlit multi-line display and ergonomic shape support convenient single-handed operation in the field or lab. Powered by a single AA battery and built for simple, quick maintenance, The L111DZ01 dissolved ozone O3 meter is a reliable solution for dissolved ozone testing in water.
SKU: L111DZ01 Categories: , , , Tags: ,

• Adopts DPD method, specially designed for dissolved ozone (O3) measurement in water
• Easily Replaceable electrode for cost-effective, extended service life
• Backlit multi-line display for clear, simultaneous viewing of all readings
• Two points calibration, auto reading lock, self-diagnosis, auto temperature compensation delivers reliable testing performance.
• Powered by a single 1.5V AA battery, auto power-off function improve battery life.
• Simple operation and durable structure, Well-suited for water treatment, environmental monitoring, aquaculture.

ParameterSpecification
Measuring Range0.00 to 10.00 mg/L
Resolution Ratio0.01 mg/L
Accuracy (Set)±5% F.S
Calibration2 points (0, any point)
Electrode TypeReplaceable non-membrane dissolved ozone electrode
Temperature Measuring Range0 to 100.0°C / 32 to 212°F
Operation Temperature Range0 to 60.0°C / 32 to 140°F
Display Screen20 × 30 mm Multi-row LCD screen
Temperature CompensationATC Automatic
IP RatingIP65
Power Supply1 × 1.5V AAA battery
Dimension (H × W × D)180 × 40 × 40 mm
Weight120 g
Automatic Backlight1 minute
Auto Shut-off20 minutes

Specifications are subject to change without prior notice.
