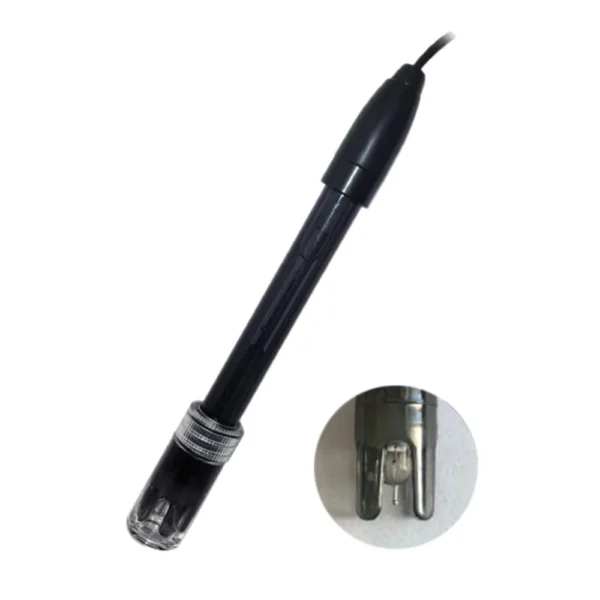

REDOX probe with platinum needle electrode and BNC connector

ORP combination electrode, platinum needle, BNC connector LS904R

The LS904R ORP electrode adopts platinum needle sensing elements and is easy to maintain. Its impact-resistant polycarbonate housing can provide excellent durability in harsh testing environments. The gel-filled KCl electrolyte ensures maintenance-free operation. The standard BNC connector is compatible with a variety of millivoltmeters, making it suitable for water quality management applications, research laboratories and educational environments.
SKU: LS904R Categories: , , Tag:
  • The platinum needle sensing element is easy to clean and polish, which can extend the service life and reliability of the electrode.
  • The durable PC housing can withstand the physical impact of accidental drops.
  • Gel electrolyte ensures stable performance without the need for electrolyte refill, minimizing operational workload to the greatest extent.
  • The standard BNC connector is compatible with various mV measurement instruments.
  • The detachable probe storage cover protects the probe from getting dry when not in use, thereby extending the service life of the electrode.
  • The economical and practical design is suitable for educational institutions and industrial researchers.
ParameterSpecification
Operating Temperature Range5 to 80 ℃ (Recommended temperature range: 5 ~ 50 ℃)
HousingPC
Sensing ElementPlatinum needle with High purity
Reference ElectrodeAg/AgCl
JunctionCeramic Single or Double
ElectrolyteGel KCl
Sensor Storage Solution3mol/L KCl solution
SizeΦ12 × 120 mm
ConnectorBNC
CableΦ3 × 0.7 m
Temperature UnitN/A

Specifications are subject to change without prior notice.
