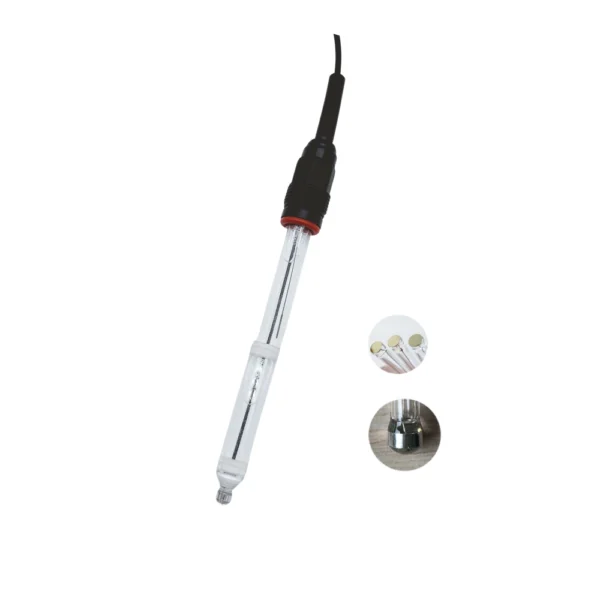

Inline Glass ORP Sensor LS908R with Platinum Disc

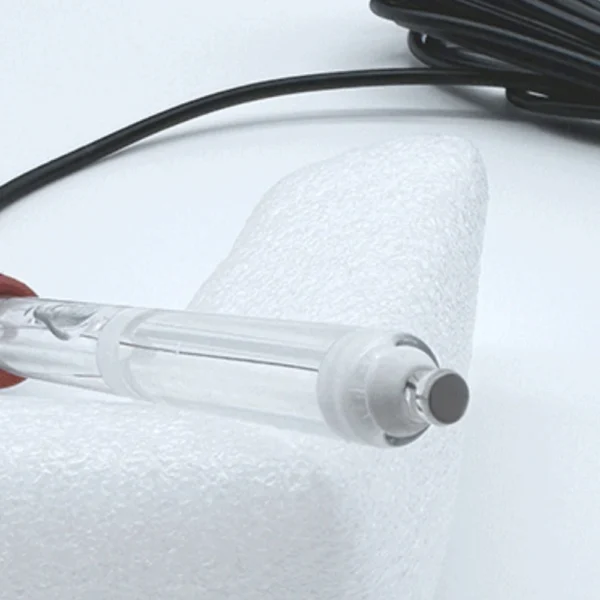

Platinum Disc detail for the Inline Glass ORP Sensor LS908R
  1. Inline Glass ORP Sensor LS908R with Platinum Disc
  2. Platinum Disc detail for the Inline Glass ORP Sensor LS908R

Online Glass Redox Probe with Platinum Disc LS908R

LS908R Industrial glass Redox probe delivers stable online measurements, featuring a platinum disc sensing element that’s simple to clean. The double junction reference system reduces contamination and prolongs electrode lifespan. Gel electrolyte technology ensures minimal maintenance. A standard BNC connector allows versatile integration, and the detachable storage cap maintains electrode hydration.
SKU: LS908R Categories: , , Tag:
  • Platinum disc sensing element provides easy-to-clean, durable surface ensuring reliable long-term inline measurements.
  • Double junction reference system structure reduces contamination risk, extending electrode life and reliability.
  • Maintenance-free gel electrolyte requires no electrolyte refill, ensuring continuous, stable operation.
  • Standard BNC connector ensures compatibility with a wide range of ORP measurement devices.
  • Detachable storage cap protects the probe during storage, extending electrode life and performance.
ParameterSpecification
Sensitive ElementHigh Purity Platinum Disc
Measuring Range-1999 mV to 1999 mV
Temperature Range0 to 60 ℃
Pressure Range0 to 3 bar, 6 bar MAX
Temperature Compensation TypeNTC10K, NTC2.252K, NTC22K, PT100, PT1000 Customizable
JunctionPTFE
Reference SystemDouble Junction
Reference ElectrolyteGel KCl
Mounting ThreadPG13.5
Housing MaterialGlass
Sensor Length120 mm
Cable ConnectionBNC, Customizable

Specifications are subject to change without prior notice.
