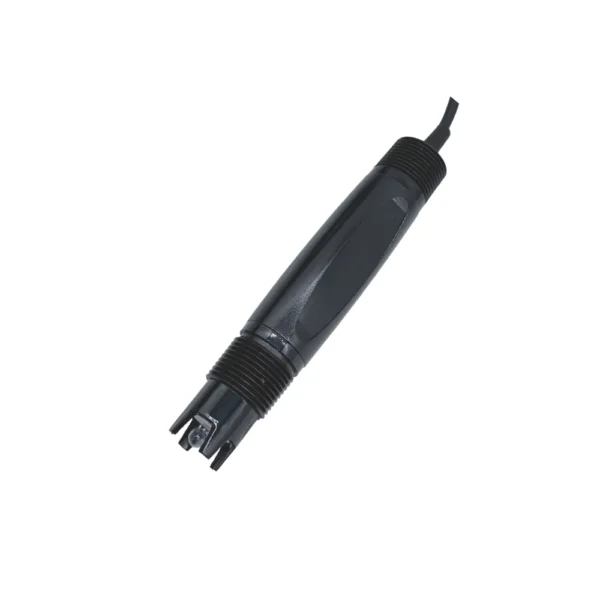

Industrial pH Sensor LS904P pH Probe with NPT3/4

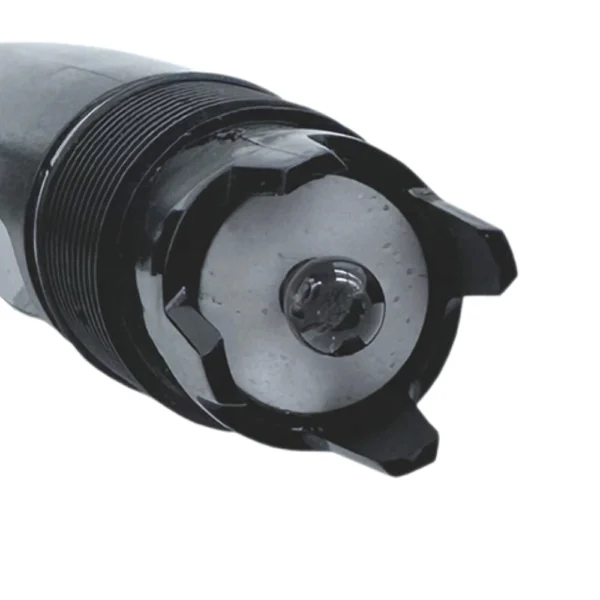

large pH glass membrane with 3/4 inch thread
Industrial Plastic pH Electrode with NPT3/4 5m cable
  1. Industrial pH Sensor LS904P pH Probe with NPT3/4
  2. large pH glass membrane with 3/4 inch thread
  3. Industrial Plastic pH Electrode with NPT3/4 5m cable

ECO Industrial Plastic pH Electrode with NPT3/4 LS904P

pH sensor LS904P provides simple NPT3/4-inch installation and replacement, featuring a gel electrolyte eliminating refills and reducing maintenance. Large electrolyte volume minimizes contamination, ensuring reliable inline monitoring. Customizable options ensure adaptability for various industries.
SKU: LS904P Categories: , , , Tag:
  • Adopt easy-to-install and replace NPT3/4-inch screw head, used in a variety of applications without the need for custom fittings.
  • Large size with more reference electrolyte, to minimize the contamination of the Ag/AgCl, ideal for in-line use.
  • Gel KCL electrolyte adopted, no need for refilling.
  • The temperature unit, connector type and cable length can be customized on request.
ParameterSpecification
Measurement Range0 to 14 pH
Operating Temperature Range5 to 60℃
Pressure Range0 to 3 bar, 6 bar MAX
HousingPC
JunctionPTFE
Reference SystemAg/AgCl
Reference ElectrolyteGel KCl
Sensor Storage Solution3 mol/L KCl solution
SizeΦ29 × 150 mm
ConnectorPin, Customizable
Cable LengthΦ3 × 5 m, Customizable
Temperature UnitN/A

Specifications are subject to change without prior notice.
