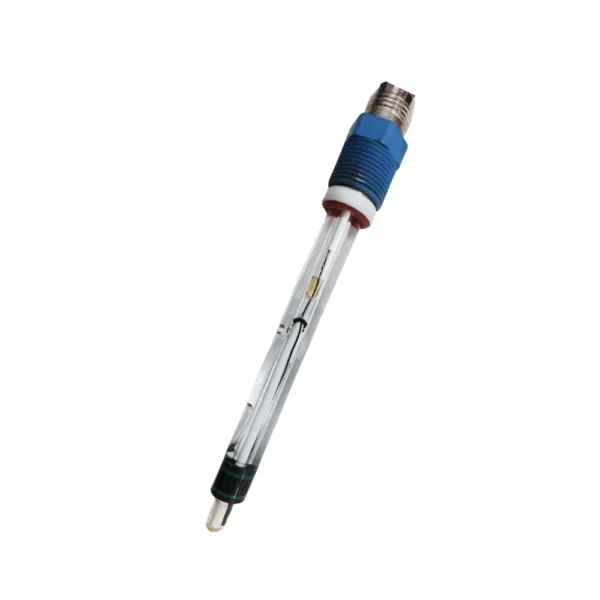

Industrial pH Sensor LS806P with Pore-free junction for harsh chemical environments

Industrial pH Combination Sensor for Challenging Chemical Processes LS806P

Industrial pH sensor LS806P uses a unique non-porous salt bridge, protecting the reference system from contamination in aggressive process media, to ensure a stable and long service life even in high-concentration ammonia, heavy metals, and sulfide conditions. Multiple glass membranes are available for high temperature, acid/alkali, or hydrofluoric acid resistance.
SKU: LS806P Categories: , , Tag:
  • Equipped with non-porous salt bridge, protecting the reference system from process contamination, extending the service life.
  • Available with optional high-temperature, acid/alkali, and HF-resistant glass membranes for optimal performance.
  • High-temperature electrolyte is rated for up to 130°C, supporting extreme process conditions.
  • Durable pH electrode membrane provides a large sensitive area, ensuring high accuracy and mechanical durability.
  • The double junction structure effectively minimizes contamination, providing exceptional stability and repeatability.
  • Customizable electrode depth, temperature element, cable length and connector type for different industrial settings.
  • Suitable for desulfurization, denitrification, chlor-alkali, ammonia, metal processing, and organic solvent industries.
ParameterSpecification
Measuring Range0 to 14 pH
Temperature Range0 to 130 °C
Pressure Range0 to 10 bar
Temperature Compensation TypeNTC10K, NTC2.252K, NTC22K, PT100, PT1000 Customizable
Membrane Resistance<250 MΩ
JunctionPole free media ×2
Reference SystemDouble Junction
Reference ElectrolyteGel KCl (Specialized for high-temperature sample)
Mounting ThreadPG13.5
Housing MaterialGlass
Sensor Length120 mm (150 / 225 / 325 / 425 mm Customizable)
pH Sensitive MembraneHA-resistant Glass Membrane, optional HT and HF-resistant type
Cable ConnectionS8 / S8M / S7 / VP / K8S / K2 Customizable

Specifications are subject to change without prior notice.
