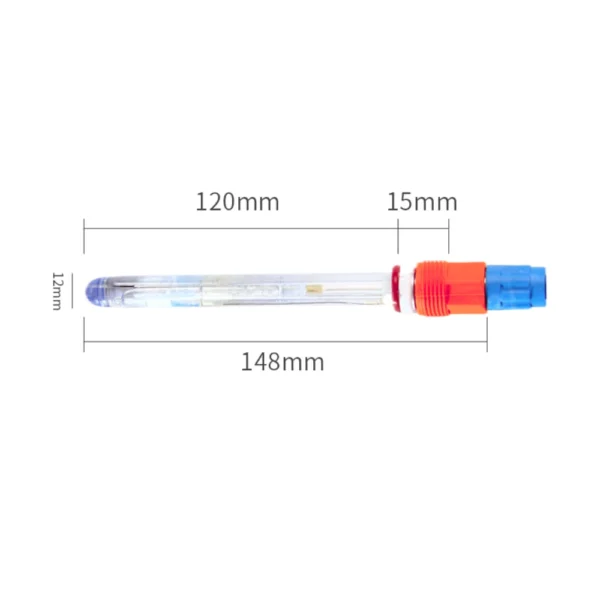

Dimensions for Industrial pH Sensor LS805P for High-Temp Pure Water
  1. Industrial pH Sensor LS805P for High-Temp Pure Water Applications
  2. Dimensions for Industrial pH Sensor LS805P for High-Temp Pure Water

Industrial pH Sensor for High-Temperature Pure Water LS805P

LS805P industrial pH sensor is specially designed for high-temperature pure water samples. Equipped with a low-impedance and durable glass membrane, as well as a low concentration high temperature type electrolyte, ensures reliable measurement performance, ideal for boiler and high-purity water applications.
SKU: LS805P Categories: , , Tag:
  • Durable pH electrode membrane provides a large sensitive area, ensuring high accuracy and mechanical durability.
  • Low-impedance pH glass membrane ensures precise and stable measurements even at low temperatures and low ionic concentrations.
  • Equipped with specialized electrolyte technology ensures accurate performance even at temperatures reaching 130°C.
  • The double junction structure effectively minimizes contamination, providing exceptional stability and repeatability.
  • Customizable electrode depth, temperature element, cable length and connector type for different industrial settings.
  • Suitable for power generation, boiler water treatment, and high-temperature pure water industries.
ParameterSpecification
Measuring Range0 to 14 pH
Temperature Range0 to 130 °C
Pressure Range0 to 3 bar, 6 bar MAX
Temperature Compensation TypeNTC10K, NTC2.252K, NTC22K, PT100, PT1000 Customizable
Membrane Resistance<250 MΩ
JunctionCeramic ×2
Reference SystemDouble Junction
Reference ElectrolyteGel KCl (Specialized for high-temperature sample)
Mounting ThreadPG13.5
Housing MaterialGlass
Sensor Length120 mm (150 / 225 / 325 / 425 mm customizable)
pH Sensitive MembraneHL (Low-impedance) Glass Membrane
Cable ConnectionS8 / S8M / S7 / VP / K8S / K2 Customizable

Specifications are subject to change without prior notice.
