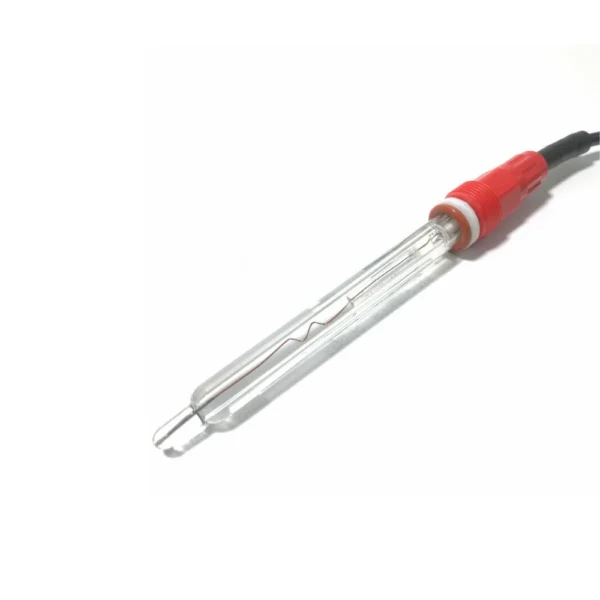

High -Temp Industrial pH sensor for Desulfurization, Gas Treatment

Industrial pH Combination Sensor for Gas Treatment, Desulfurization LS802P

The industrial pH sensor LS802P is designed for high-temperature environments in desulfurization and gas treatment processes. Featuring robust thick glass membrane and advanced electrolyte technology, the pH sensor IS802P provides consistent stability and precision in solutions with high sulfur and heavy metals content, reduce the process maintenance.
SKU: LS802P Categories: , , , Tag:
  • Robust cylindrical pH electrode membrane provides a large sensitive area, ensuring high accuracy and mechanical durability.
  • High-temperature resistant pH glass membrane designed specifically for demanding industrial applications involving elevated temperatures.
  • Specialized mixed-gel electrolyte in the pH sensor, ensuring reliable performance and stability in solutions containing sulfur ions, suspended particles, and heavy metals.
  • The dual-junction structure effectively minimizes contamination, providing exceptional stability and repeatability.
  • Customizable electrode depth, temperature element, cable length, and connector type for different industrial settings.
  • Suitable for desulfurization, denitrification, and challenging industrial waste gas treatment processes.
ParameterSpecification
Measuring Range0 to 14 pH
Temperature Range0 to 100 °C
Pressure Range0 to 3 bar, 6 bar MAX
Temperature Compensation TypeNTC10K, NTC2.252K, NTC22K, PT100, PT1000 Customizable
Membrane Resistance<250 MΩ
JunctionCeramic ×2
Reference SystemDouble Junction
Reference ElectrolyteGel KCl (Specialized for Desulfurization Application)
Mounting ThreadPG13.5
Housing MaterialGlass
Sensor Length120 mm (150 / 225 / 325 / 425 mm Customizable)
pH Sensitive MembraneHT (High Temperature) Glass Membrane
Cable ConnectionS8 / S8M / S7 / VP / K8S / K2 Customizable

Specifications are subject to change without prior notice.
