Durable HF-resistant glass Industrial pH Sensor

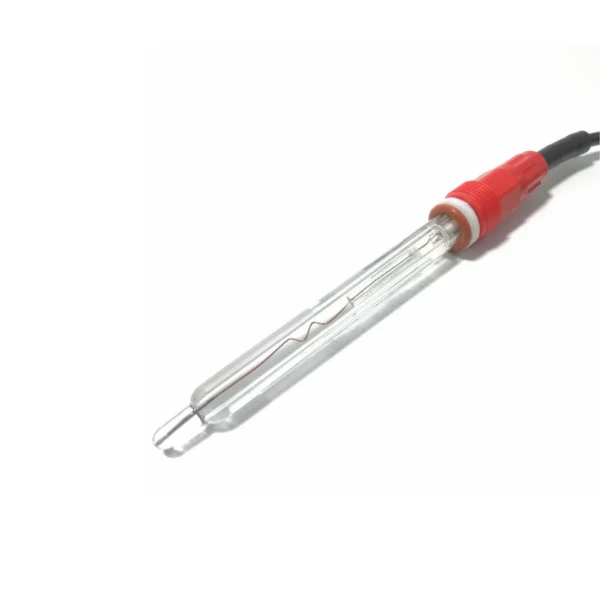

Industrial Glass HF-Resistant pH Combination Sensor LS803P

The industrial pH sensor LS803P uses HF(Hydrofluoric acid)-resistant glass membrane to accurately measure in corrosive fluorine-containing environments. The double junction pH sensor structure ensures stable measurement and long service life, making it an ideal choice for applications in semiconductor, petrochemical and metal wastewater.
SKU: LS803P Categories: , , , Tag:
  • Designed with HF-resistant glass membrane, can withstand up to 4000 ppm of fluoride and suitable for harsh wastewater environments.
  • Compared with traditional antimony electrodes, featuring higher measurement accuracy and faster response speed.
  • The double junction structure ensures higher long-term stability, reducing the frequency of maintenance.
  • The rugged pH sensitive membrane can resist mechanical shock and wear and is suitable for harsh industrial environments.
  • A special mixed gel electrolyte is adopted to provide long-term stability in measurement and reduce the frequency of electrode replacement.
  • Customizable electrode depth, temperature elements, electrolyte types, cable lengths and connectors are available to precisely adapt to various industrial scenarios.
  • Suitable for semiconductor, petrochemical, steel industrial wastewater, metal surface treatment and electronic electroplating industries.
ParameterSpecification
Measuring Range0 to 14 pH
Temperature Range0 to 100 °C
Pressure Range0 to 3 bar, 6 bar MAX
Temperature Compensation TypeNTC10K, NTC2.252K, NTC22K, PT100, PT1000 Customizable
Membrane Resistance<250 MΩ
JunctionCeramic ×2
Reference SystemDouble Junction
Reference ElectrolyteGel KCl (Specialized for Desulfurization Application)
Mounting ThreadPG13.5
Housing MaterialGlass
Sensor Length120 mm (150 / 225 / 325 / 425 mm Customizable)
pH Sensitive MembraneHT (High Temperature) Glass Membrane
Cable ConnectionS8 / S8M / S7 / VP / K8S / K2 Customizable

Specifications are subject to change without prior notice.
