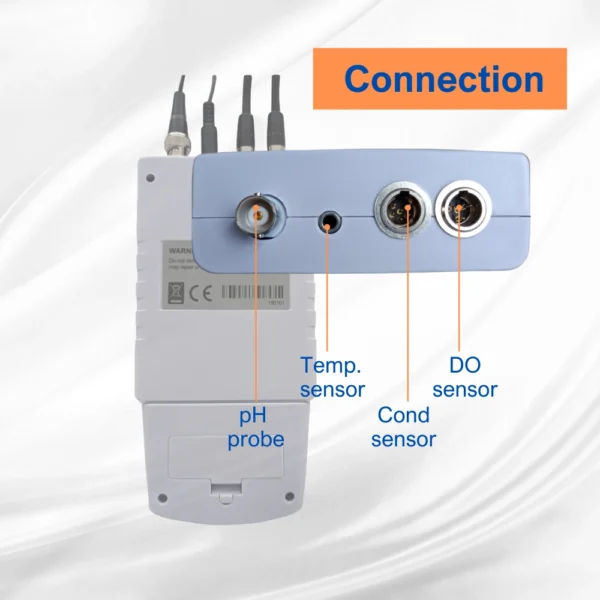

• Three electrodes can be connected simultaneously, to measure up to 8 parameters at the same time.

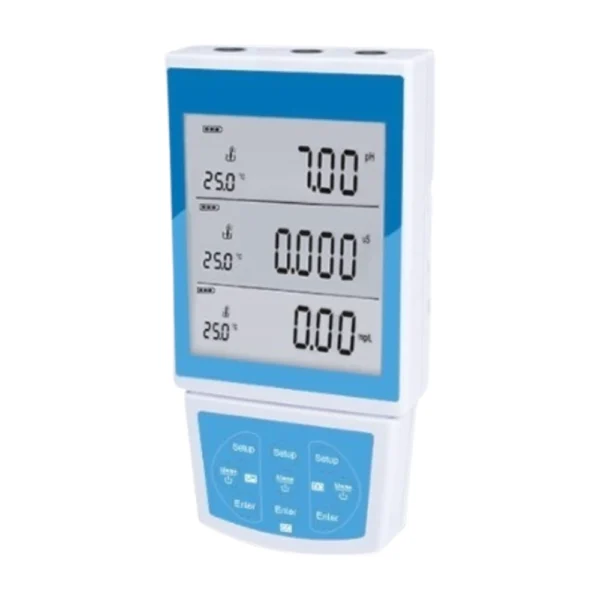

• Large easy-to-read LCD, simultaneous display three parameters, no need to switch view readings anymore.
• User-friendly operation functions including auto power off, auto reading hold, parameters reset.

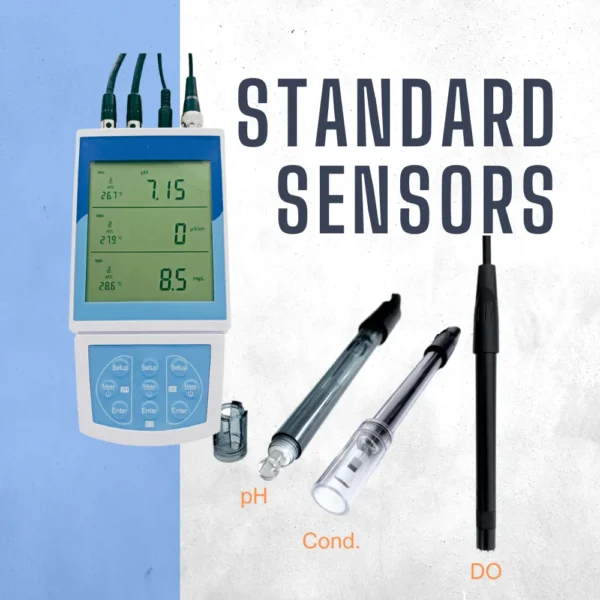

• COMPLETE KIT with electrodes, calibration solutions, all in a durable portable carrying case.
• Quick and easy 1 to 3 points pH standard calibration, automatically recognizing pH standard solution.
• Equipped with 3-in-1 plastic pH/Temp. electrode, suitable for measuring the general water solution.
• Quick and easy 1-3 points standard conductivity calibration.
• Single tap to switch cond. TDS and salinity measurement reading.
• TDS factor, Conductivity electrode constant, reference temperature, temperature compensation coefficient are adjustable depends on various measurement conditions.
• Equipped with k=1 2-pole platinum conductivity electrode, suitable for measuring the general water solution.
• 1-2 points calibration with air-saturated water or zero oxygen solution for DO measurement.
• Auto temperature compensation, manual salinity and pressure compensation, ensures accurate DO measurements over the full range.
• Equipped with a polarographic DO electrode with built-in temperature sensor, and comes with replaceable spare membrane cap and inner electrolyte.
| Parameter | Specification |
|---|---|
| pH Measuring Range | -1.00 to 15.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH ±1 digit |
| pH Temperature Compensation Range | 0 to 60°C (automatic) |
| Calibration Point | 1 to 3 points |
| Conductivity Measuring Range | 0 to 20 mS/cm |
| TDS Measuring Range | 0 to 200 g/L |
| Salinity Measuring Range | 0 to 10 ppt |
| Conductivity Resolution | 0.01 / 0.1 μS/cm; 0.01 / 0.1 mS/cm |
| Conductivity Accuracy | ±1.0% F.S ±1 digit |
| Conductivity Temp. Compensation Range | 0 to 50°C (automatic) |
| DO Measuring Range | (0 to 20.00) mg/L (ppm); (0 to 200.0) % |
| DO Resolution | 0.1 mg/L (ppm); 0.1 % |
| DO Accuracy | ±0.50 mg/L or ±2%, including electrode error |
| Response Time | ≤ 30 s (25°C, 90% response) |
| Zero Point Deviation | ≤ 0.10 mg/L |
| DO Temperature Compensation Range | (0 to 40) °C (automatic) |
| Salinity Compensation Range | (0 to 35) ppt (manual) |
| Air Pressure Compensation Range | (450 to 850) mmHg (manual) |
| Electrode Type | Polarographic Type |
| Temperature Measuring Range | 0 to 60°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.5°C ±1 digit |
| Data Storage | 1000 sets |
| Signal Output | USB |
| Power Supply | 9 × 1.5V LR44 batteries |
Specifications are subject to change without prior notice.
