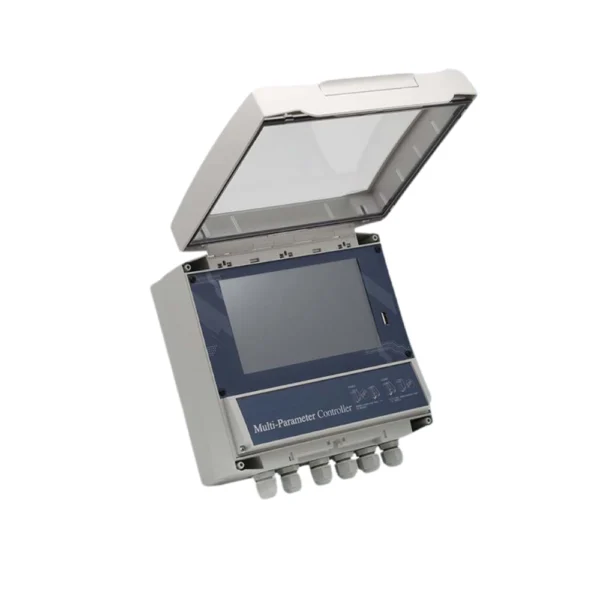

Digital Industrial Multi-Parameter Transmitter for IS Series Sensor IM002D
The IM002D digital multi-parameter transmitter is suitable for industrial and environmental water quality monitoring. Supporting plug-and-play digital sensors like COD, turbidity, and dissolved oxygen, it streamlines setup and sensor replacement. Equipped with a large 7-inch color touchscreen, users benefit from real-time display of 8 parameters and simplified operation. Featuring robust data storage exceeding two years, and IP65 durability, make the IM002D multi-parameter controller ideal for water quality analysis in drinking water, wastewater, surface water, and sewage treatment.
- Automatically recognises various digital sensors in IS series such as dissolved oxygen, turbidity, COD, and sludge concentration sensor etc.
- Large and user-friendly 7-inch color touchscreen displays 8 measurement parameters simultaneously.
- Plug-and-play sensor connection design simplifies electrode installation and replacement, minimizes downtime, and improves operational efficiency.
- Supports up to eight 4~20mA analog outputs and digital RS485 outputs for seamless system integration.
- Features automatic data storage, real-time graphical display, and USB data export, with storage capacity exceeding two years.
- Highly integrated design including 5 relays, 2 digital I/O ports, compatible with DTU for comprehensive remote control.
- Automatic error detection and real-time alarm notifications increase operational safety and ensure immediate response to issues.
- Ideal for automatic monitoring across drinking water, groundwater, industrial wastewater, and sewage treatment.
| Parameter | Specification |
|---|---|
| Display | 7” color touchscreen with LED backlight |
| Resolution | 800 × 480 |
| I/O Ports | 2 channels |
| Relays | 5 channels |
| 4–20 mA Output | Standard 1 channel (expandable up to 8 channels) |
| Measurement Parameters | Supports IS series digital sensors, such as online multiparameter, COD, ammonia, ORP, salinity, BGA, chlorophyll, OIW, etc. |
| Power Supply | 220V AC or 24V DC (optional) |
| Communication Protocol | RS485, MODBUS-RTU standard protocol |
| Data Storage | Continuous storage >2 years |
| Data Portability | Supports USB export |
| Housing Material | ABS |
| Operating Temperature | 0 to 50 ℃ |
| Dimensions | 225 mm × 229 mm × 119 mm (H × W × D) |
| Mounting Method | Wall-mounted |
Specifications are subject to change without prior notice.
