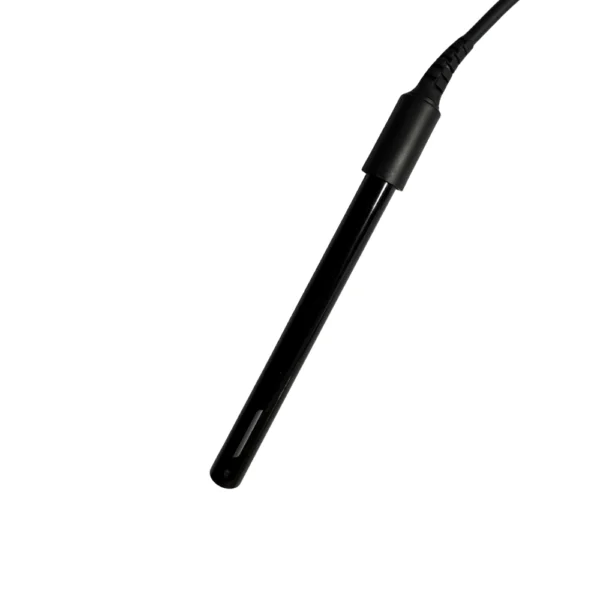

Customizable 4 pole cell Conductivity Electrode for High Electrolyte Solution LS909C

The LS909C conductivity electrode provides accurate and reliable conductivity measurement, and is especially suitable for high-electrolyte samples such as wastewater and seawater. Featuring on epoxy sensor shaft and graphite sensor element, the LS909C conductivity electrode is resistant to chemical corrosion and can withstand harsh environments. The innovative four-ring electrode design ensures accurate linearity and minimal polarization, thus providing reliable readings. Customizable parameters including cell constants, temperature sensors type and connectors ensure the best measurement performance for specific applications, making it an ideal choice for laboratory analysis and industrial monitoring.
  • Durable epoxy construction with graphite electrodes ensures excellent chemical resistance and long-term reliability.

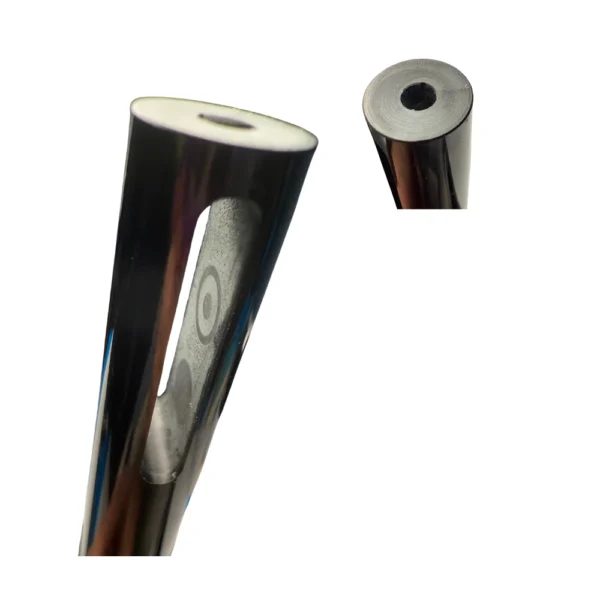

  • Advanced 4-pole cell sensor design maintains excellent linearity over a wide conductivity range with minimal polarization.
  • Low electrode contamination sensor structure ensures stable and accurate measurement results.
  • Customizable electrode constants according to sample conductivity ranges, improving measurement accuracy.
  • Optional temperature elements (10K, PT100, PT1000) and materials (graphite, stainless steel) are available for various test environments.
  • Customizable connectors for seamless integration with different conductivity meters.
  • Ideal for high-electrolyte solutions including wastewater treatment, marine studies and industrial applications.
ParameterSpecification
Conductive MaterialGraphite
Electrode Housing MaterialEpoxy
Temperature Sensor HousingGraphite or Stainless Steel (customizable)
Temperature Compensation Unit10K, PT100, PT1000, etc. (customizable)
ConnectorCustomizable
Temperature Range0 to 80°C
Measuring Range0 to 200 mS/cm
Pressure Range0 to 100 psi

Specifications are subject to change without prior notice.
